Repair Couplings
Product Over View

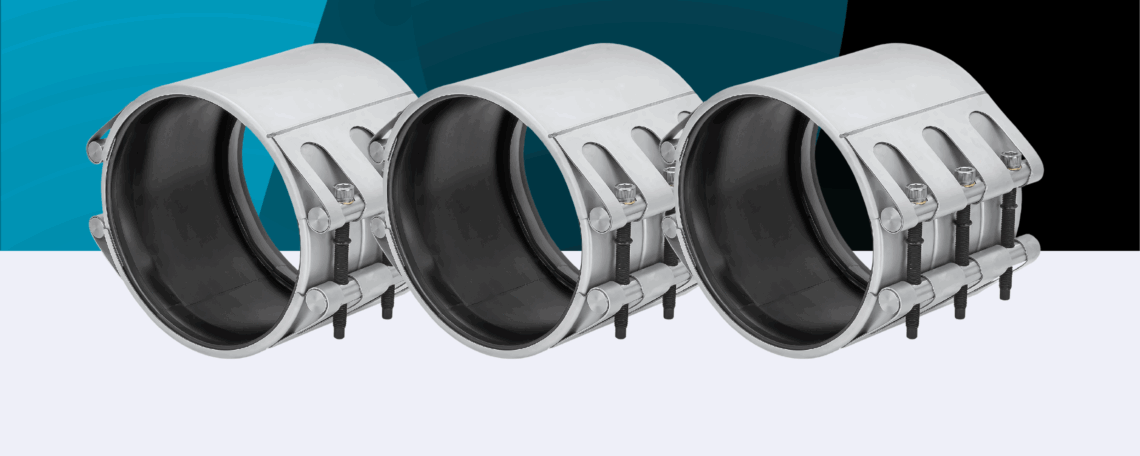

The Repair Coupling is a robust stainless steel coupling designed for the rapid connection and repair of pipelines without welding. Manufactured from AISI 304 or AISI 316 stainless steel, it ensures superior corrosion resistance and long service life.
Equipped with interchangeable sealing gaskets — EPDM, NBR, Viton, or Silicone — it provides compatibility with various media, including water, air, fuel, gas, and multiple chemicals. The coupling accommodates angular deflection, axial movement, diameter variations, and misaligned pipes, ensuring a reliable seal under pressures up to 24 bar.

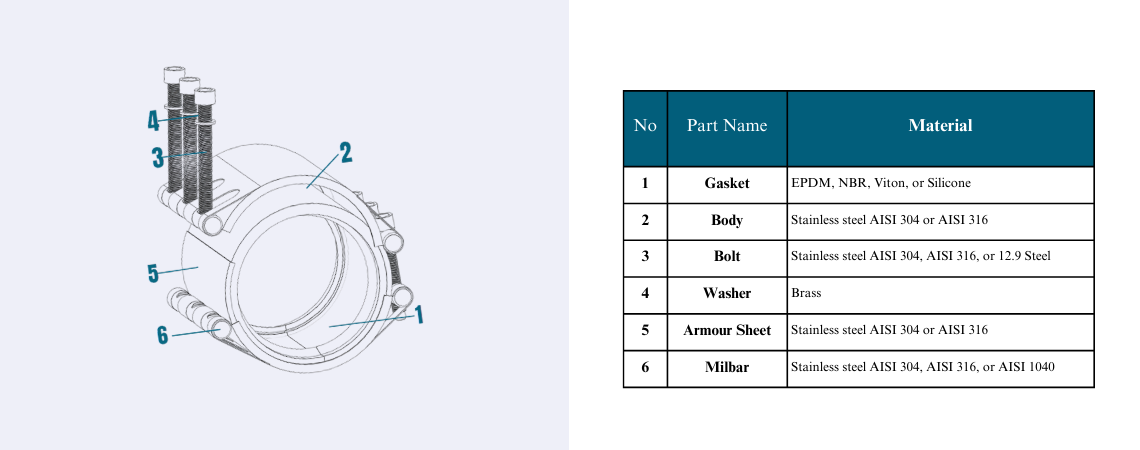

Parts Detailes

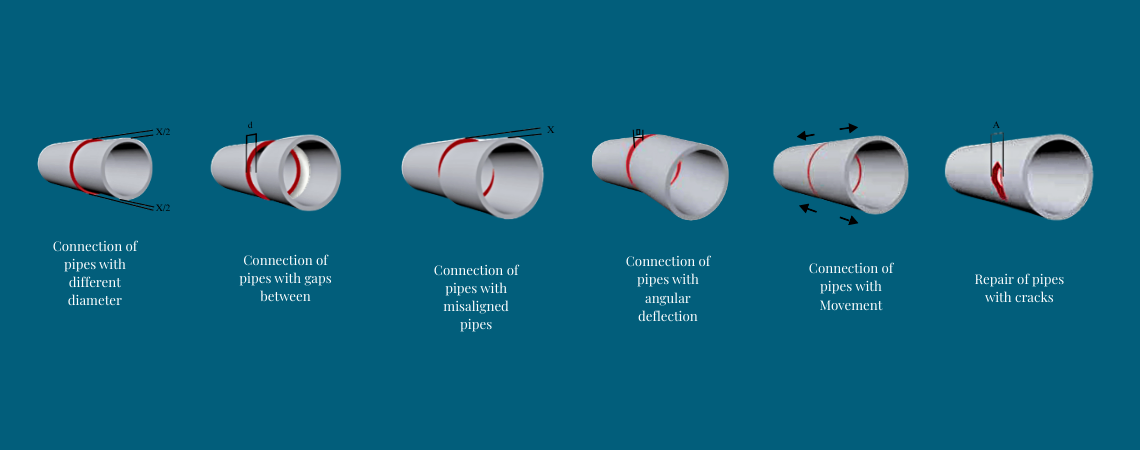

Repair & Connection Capabilities
Sealing Gasket Options
- EPDM — Water, air, and some chemicals | -20°C to +100°C
- NBR — Fuel, gas, and some hydrocarbons | -20°C to +80°C
- VITON — Wide chemical resistance | -40°C to +220°C
- SILICONE — Drinking/domestic water | -55°C to +200°C
Advantages of Repair Coupling
Easy to Fit
Light Weight
Wide Media Compatibility
No Welding
Documentation
Key Features of Repair Coupling
-
Fast install: Clamp-on—no welding.
-
High sealing: Up to 24 bar; handles cracks/misalignment.
-
Durable & versatile: 304/316 SS with EPDM/NBR/Viton/Silicone gaskets (–55°C to +220°C).
-
Wide range: 148–1300 mm OD; custom sizes on request.
